High Design Flexibility
Smart Maintenance Method
Model(mm): P2.5, P3, P4, P5, P6 , P8, P10

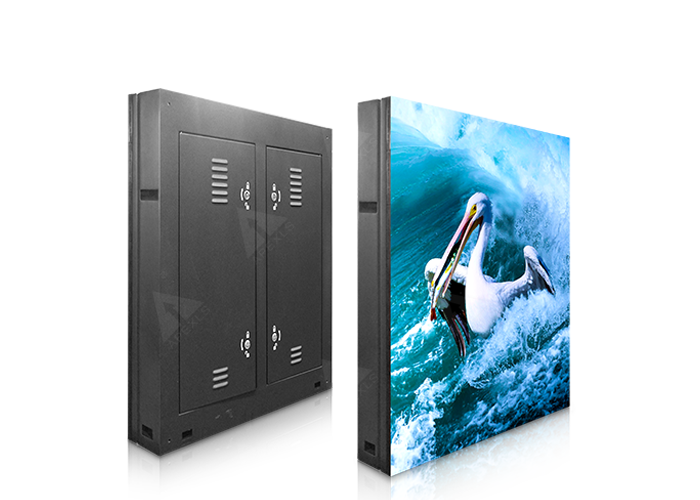

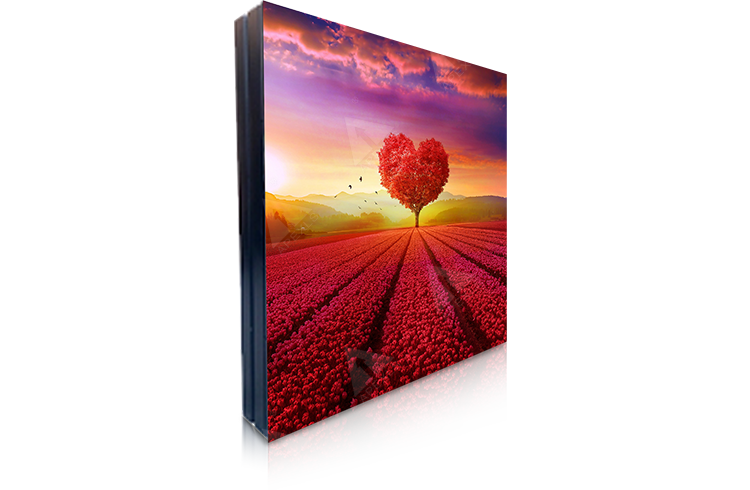

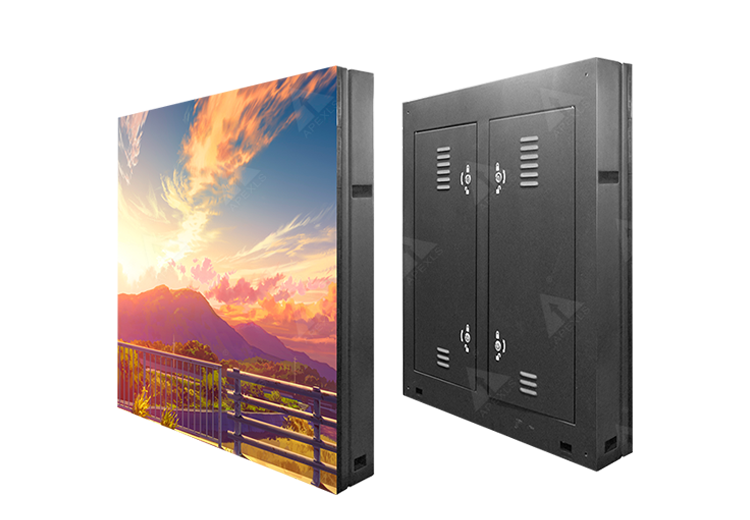

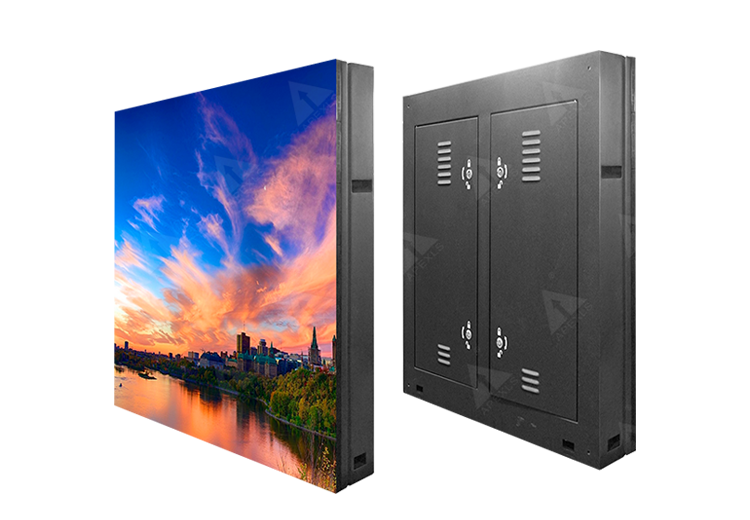

Outdoor LED display conventional series is an outdoor surface mount LED high-definition display, which belongs to the standardized series of APEXLS. The module kit is designed with a customized 45°inclination angle, which can be spliced at right angles and arcs to enhance visual effects.
Widely used in outdoor advertising such as outdoor squares, buildings, airports, railway stations, bus stations, high-speed railway stations and so on.

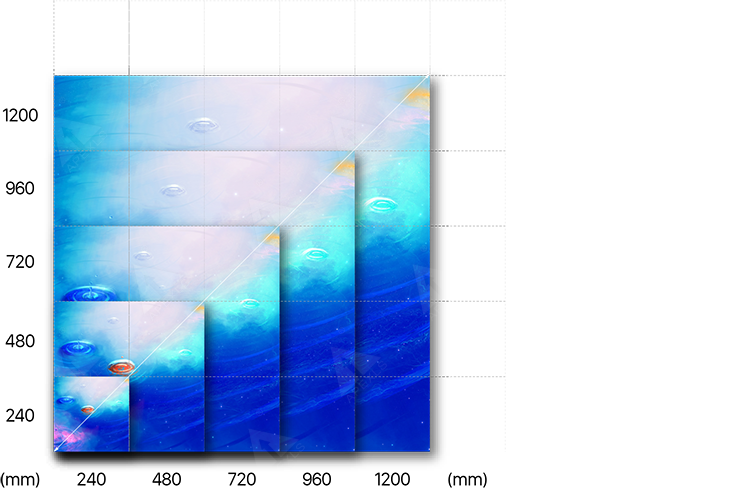

Customized cabinet size 960x960mm, 720x960mm, 1200x960mm, 1200x1200mm, etc.
Front maintenance by fast lock(P6 P8 P10), front maintenance by screw (all 240x240mm series)
LED chip with ultra high brightness ensure high image quality even under direct sunlight.

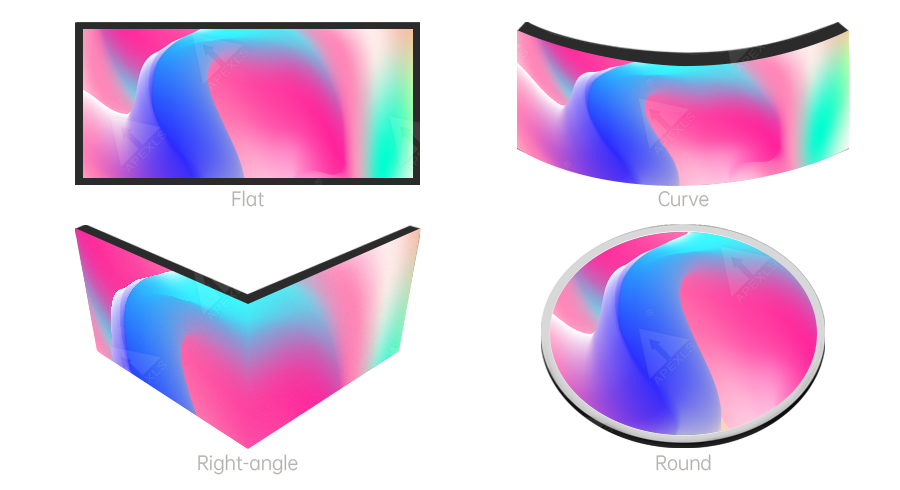

Flat, curve, right-angle, round, etc.
| Model | P2.5 | P3 | P4 | P5 | P6 | P8 | P10 |
| Pixel Pitch(mm) | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 |
| Pixel Composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| LED Type | SMD1415 | SMD1415 | SMD1921 | SMD1921 | SMD3535 | SMD3535 | SMD3535 |
| Pixel Density(dots/m²) | 160,000 | 111,111 | 62,500 | 40,000 | 27,777 | 15,625 | 10,000 |
| Cabinet Size(mm) | 960×960 | 960×960 | 1024×1024 | 960×960 | 960×960 | 1024×1024 | 960×960 |
| Cabinet Resolution(dots) | 384×384 | 320×320 | 256×256 | 192×192 | 160×160 | 128×128 | 96×96 |
| Module Size(mm) | 320×160 | 192×192 | 256×128 | 320×160 | 192×192 | 256×128 | 320×160 |
| Module Resolution(dots) | 128×64 | 64×64 | 64×32 | 64×32 | 32×32 | 32×16 | 32×16 |
| Cabinet Material | Aluminum / Iron | ||||||
| Cabinet Weight(kg) | around 50-60 kg/m² (Iron) ; around 35-40 kg/m² (Aluminum) | ||||||
| Brightness(cd/c) | 4,500 | 5,000 | 5,500 | 6,000 | 6,000 | 6,000 | 6,000 |
| Power Avg.(W/m²) | 360 | 300 | 300 | 300 | 300 | 300 | 300 |
| Power Max.(W/m²) | 800 | 1100 | 800 | 850 | 850 | 800 | 800 |
| Refresh Rate(Hz) | 1920~3840 | ||||||
| Gray Scale(bit) | 12 ~ 16 | ||||||
| Installation/Maintenance | Front / Rear | ||||||
| Certification | CE ETL FCC RoHS | ||||||
