Maximum 22° concave
Can be assembled at right angles
Model(mm): P1.9，P2.5，P2.9，P3.9
Cabinet Size(mm): 500×250，750×250，1000×250

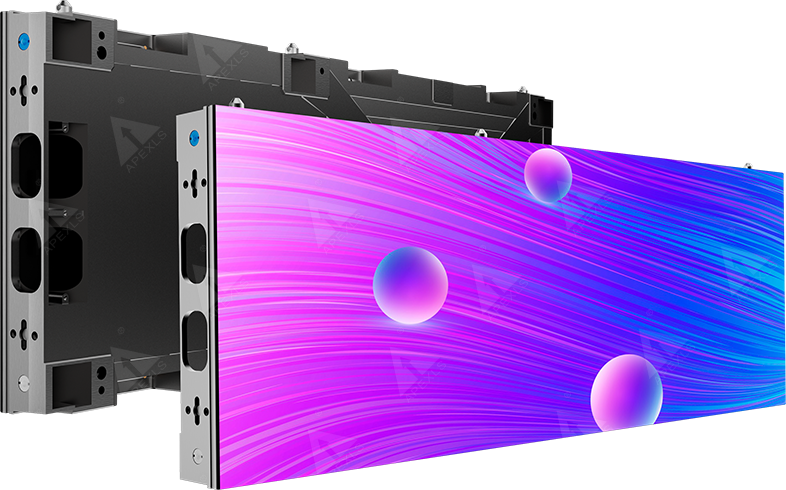

Apexls’ KL Series indoor LED display has variety of available pixel pitches for options. The unique design like cutting brim and thin led module design can achieve customer’s variety applications and solutions.
Widely used in conference rooms, hotels, shopping malls, monitoring rooms, stage backgrounds, studios and so on.
Cabinet thickness: 43mm, Have a “reliable” hardware backup method

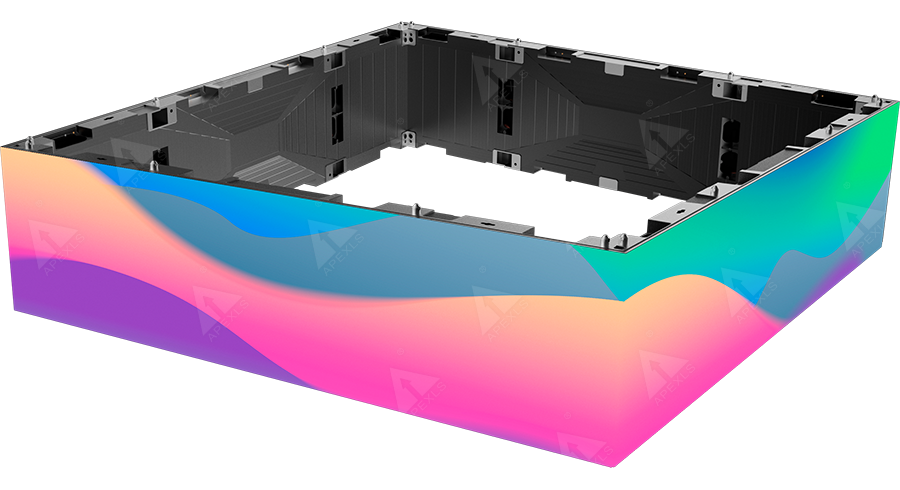

Can be assembled at right angles. Multi lock positioning, seamless connection error<0.05mm
A smooth arc can be achieved through the standard box + angle block + customized inner arc kit, providing more possibilities for scene design

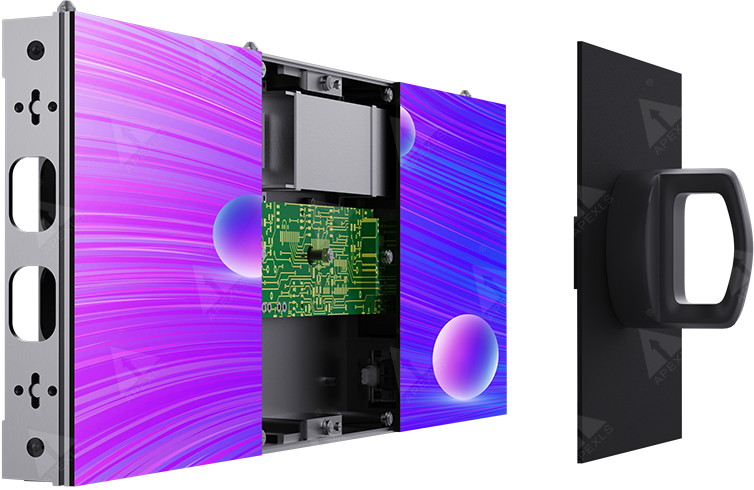

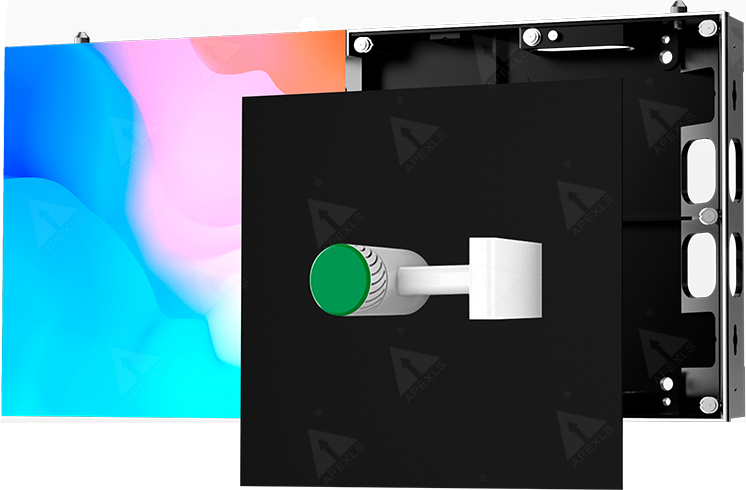

Complete front maintenance, no need to reserve maintenance channel behind
Die-cast aluminum frame, high strength and no deformation.Multi-size boxes meet various installation sites
| Model | P1.2 | P1.5 | P1.9 | P2.5 | P2.9 | P3.9 |
| Pixel pitch(mm) | 1.250 | 1.560 | 1.953 | 2.5 | 2.976 | 3.906 |
| Pixel density (pixels) | 640,,000 | 409,600 | 262,178 | 160,000 | 112,910 | 65,536 |
| LED config | SMD1010 | SMD1212 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Module size (mm) | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 | 250 x 250 |
| Module resolution(pixels) | 200×200 | 160×160 | 128 x 128 | 100 x 100 | 84×84 | 64 x 64 |
| Cabinet size (mm) | 1000 x 250 /750 x 250 / 500 x 250 ( 43mm thickness ) | |||||
| Cabinet weight(kg/m²) | 1000x250mm 6kg / 750x250mm 5.1kg / 500x250mm 35kg | |||||
| Cabinet material | Die-casting aluminium | |||||
| Service | Front service | |||||
| Brightness(nits) | 600-800 | 600-800 | 600-800 | 800-1,100 | 800-1,100 | 800-1,100 |
| Refresh rate (Hz) | 1920~3840 | 1920~3840 | 1920~3840 | 1920~3840 | 1920~3840 | 1920~3840 |
| Gray scale (bit) | 14-16 | 14-16 | 14-16 | 14-16 | 14-16 | 14-16 |
| Brightness control | 256 | 256 | 256 | 256 | 256 | 256 |
| Ave.Power consumption(W/m²) | 267 | 267 | 267 | 267 | 267 | 267 |
| Max.Power consumption(W/m²) | 570-620 | 570-620 | 570-620 | 570-620 | 570-620 | 570-620 |
| Input power frequency | ＞ 60 Hertz | |||||
| Operating voltage | AC100V-240V 50-60Hz | |||||
| Blind spot rate | ＜1/10,000 | |||||
| Lifetime（hours） | 100,000 | |||||
| MTBF(hours) | >10,000 | |||||
| Operating temperature(℃) | ﹣30～﹢50 ℃ | |||||
| Operating humidity | 10％ ～ 90％ | |||||
| Control distance | CAT5 cable:＜100 m; Single mode fiber:＜10 km | |||||
| Signal input format | AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI | |||||
| Operating system | Windows | |||||
| Certificate | CE ETL FCC RoHS | |||||
