Size Customization
Visual art
Model(mm): P1.5，P2，P2.5，P4 ，P6

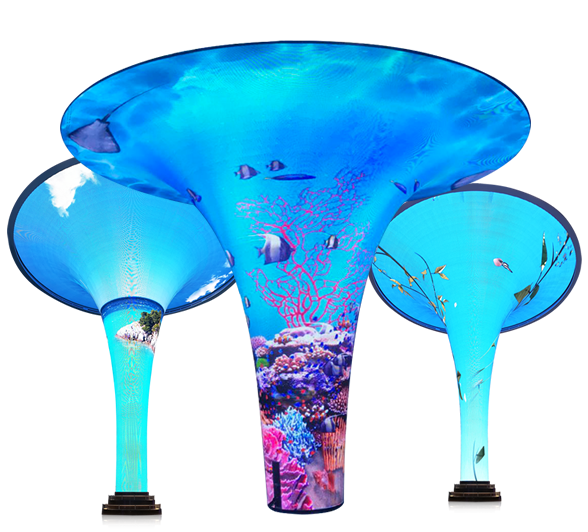

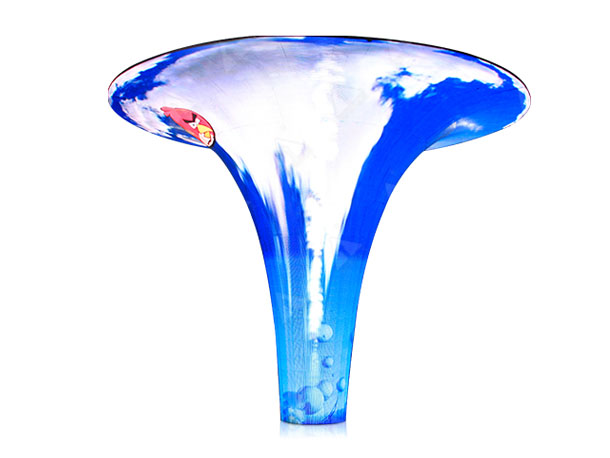

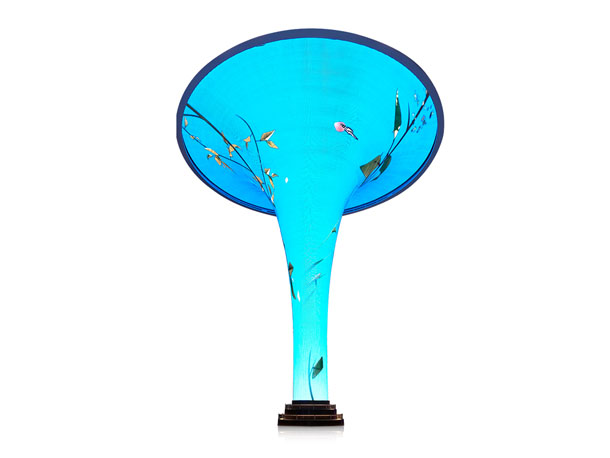

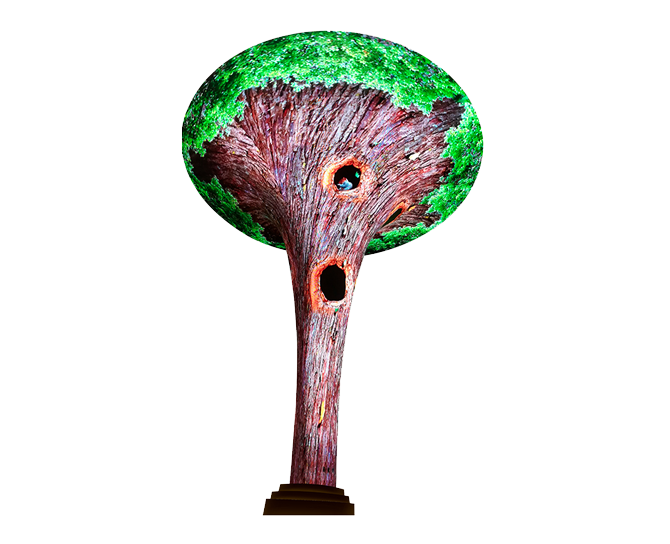

APEXLS Trumpet-shaped display screen is designed and assembled with various patented special-shaped modules, to perfectly combined with the building support column by high-tech methods. Standing under the screen, audiences would have full experience of immersive, astonish feeling by video contents and sound effects.
Railway stations，Airports，Large shopping malls，Concerts，Exhibition halls，Science，Museums
The modular units are small and a bit flexible, can be used to make more complex shapes, including cylindrical, s shape, waveform, spherical and other products creative design and solutions.
Our unique led module is in ultra-thin design, with hollow shaped panel, the whole screen is thin and light, easy to install, and the overall shape is beautiful and charming.
With the appearance of decorative effect, dynamic and visual impact, the led trumpet screen becomes a kind of novel advertising form, and is very ornamental. High gray scale and refresh rate make the display show super clear images without ghosting phenomenon.
Adopted distributed scanning technology and modular design, the led trumpet screen has high reliability and stability.
| KC Series Trumpet LED Display | |||||
| Model | P1.5 | P2 | P2.5 | P4 | P6 |
| Pixel Pitch(mm) | 1.5 | 2 | 2.5 | 4 | 6 |
| LED Type | SMD1212 | SMD1212 | SMD2121 | SMD2121 | SMD2121 |
| Pixel Density(dots/㎡) | 444443 | 250000 | 160000 | 62500 | 27777 |
| Scanning Method | 1/32 | 1/32 | 1/32 | 1/32 | 1/32 |
| Brightness(cd/㎡) | ≥1000 | ≥1000 | ≥1000 | ≥1000 | ≥1000 |
| Avg Power Consumption(W/㎡) | 250-300 | 250-300 | 250-300 | 250-300 | 300 |
| Max Power Consumption(W/㎡) | ≤550 | ≤550 | ≤550 | ≤550 | ≤600 |
| Refresh Rate(Hz) | 960-5000 | ||||
| Input Voltage | AC100-240V/50-60Hz | ||||
| Life Span | 100,000 hours | ||||
| Working Temperature | -20°C～60°C | ||||
| Working Humidity(RH) | 10%～90% | ||||
| Gray Scale | 12-16 bit | ||||
